Configuring DNS Records from a Domain Connected to WebSelf - Exchange - Suite Office 365

Whether you are "Connecting" also called "Redirecting" your to your WebSelf site, or having a domain name hosted by WebSelf, here's how to change the DNS and MX settings for your domain to configure the Suite Office 365:

IMPORTANT:

These settings affect how your domain works with other computers and the Internet. Changing these settings can result in a disruption in service to your website and emails. We therefore recommend only experienced users to make changes to these items.

  • In your individual dashboard, click on "Manage" and then on "Domains".

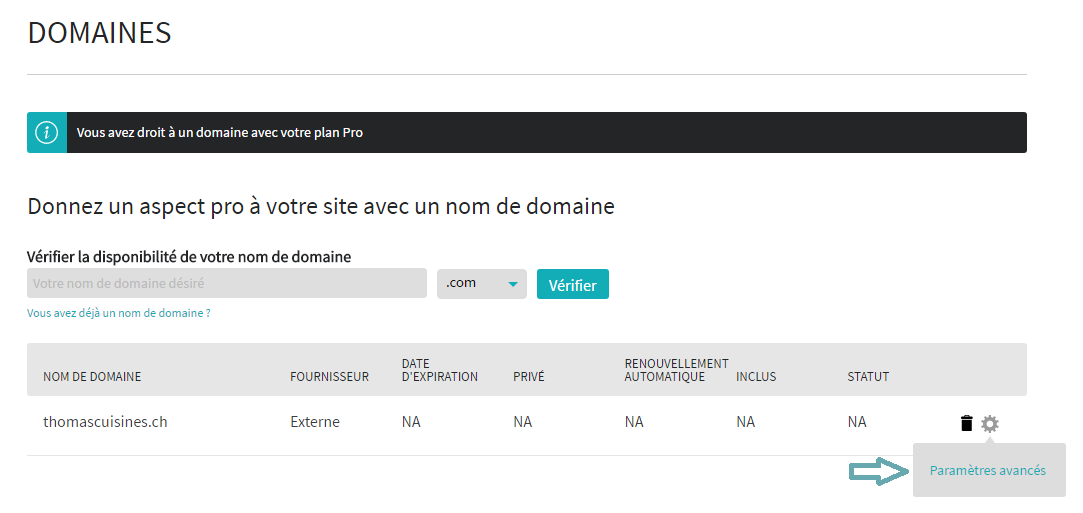

  • Go to the gear icon located at the right of your domain name.
  • Click on "Advanced Settings".

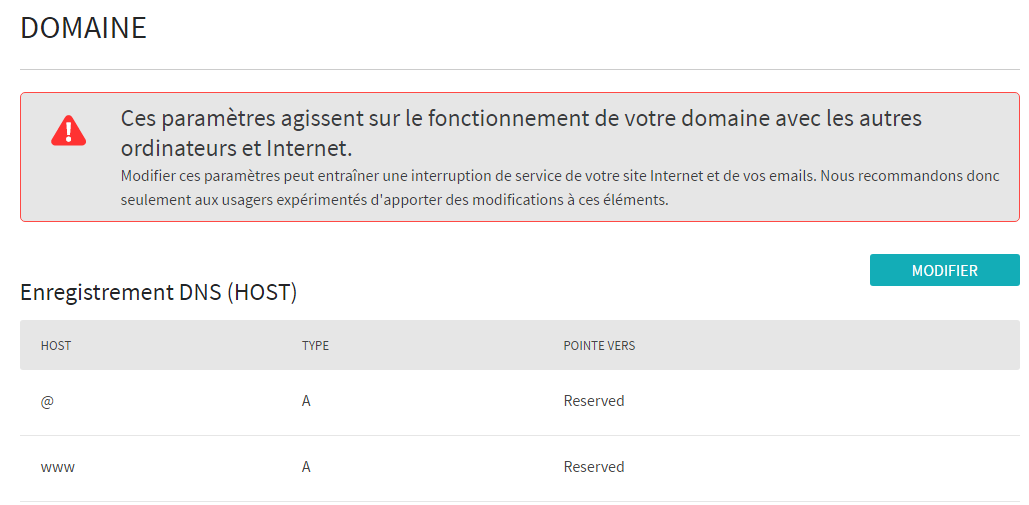

  • You will be presented with a table that contains two types of records:


1. DNS records (HOST)

Here you can add a Hostname (record) to your DNS zone:

  • Click on Modify.
  • Click on OK (to the alert message).
  • The Edit DNS table appears.
  • Click on Add Host.
  • Choose the type of host.
  • Enter the name of the host and its value.
  • Click on Save.

Example of adding DNS records for the Suite Office 365:


Here is how to set up the records that you have received from Microsoft :

IMPORTANT: The values my be different; you are responsible for getting the values that apply to your domain name  directly from Microsoft.



 HOST  TYPE TARGET
 @  A  Reserved
@ www  Reserved
 entrepriseregistration  CNAME  entrepriseregistration.windows.net
 entrepriseenrollment CNAME  entrepriseenrollment.manage.microsoft.com
 barracuda86363805732  CNAME  ess.barracuda.com
 lyndiscover  CNAME  webdir.online.lync.com
 www  CNAME  d8myjuukarp1u.cloudfront.net
 autodiscover  CNAME  autodiscover.outlook.com
 sip  CNAME  sipdir.online.lync.com
 _sipfederationtls._tcp  SRV  sipfed.online.lync.com
 _sip._tls  SRV  sipdir.online.lync.com
 @  TXT  MS=ms12345678
 @  TXT  v=spf1 include:spf.protection.outlook.com -all
@  Redirect  http://www.yourdomaine.com



NOTE: Sometimes no TXT (MS=ms12345678) and no Redirect records are given.

IMPORTANT:

SRV records use the following format:

 PORT PROTOCOL  NAME   SERVICE  PRIORITY  WEIGHT  TARGET
443 _tls  @  _sip  100  1  sipdir.online.lync.com
5061 _tcp  @ _sipfederationtls  100  1  sipfed.online.lync.com

 To configure your SVR records :

IMPORTANT: You must add a sip CNAME record type.

Using the data shown in the example above, here is the order of entry for your SRV record at the WebSelf configuration table:

 sip  CNAME  sipdir.online.lync.com PRIORITY WEIGHT TARGET
 _sipfederationtls._tcp  SRV  sipfed.online.lync.com 100 1 5061
 _sip._tls  SRV  sipdir.online.lync.com 100 1 443

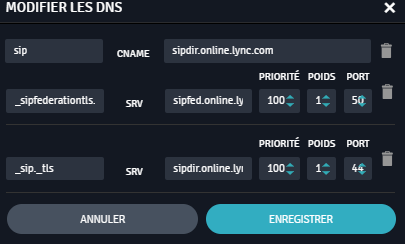

The SVR récords set up in your WebSelf account will look like the example below:




 2. ENREGISTREMENTS MX (Email)

HOST POINTS TO PRIORITY
               @ d186804a.ess.barracudanetworks.com                      5
              @ d186804b.ess.barracudanetworks.com                     10



If you are not using any type of farewall services, simply indicate the MX records that you have received from Microsoft:

Example:

 Exchange online   Type      Priority      Host   Target  Lifetime
 0     @      groupemercini-com.mail.protection.outlook.com  1 hour

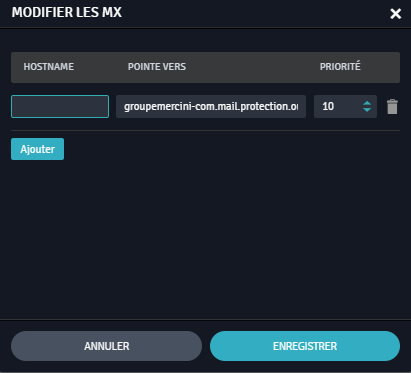

The MX récords set up will look like the example below:
